Honeywell
PX2AN1XX100PAAAX
PX2 Series Heavy Duty Pressure Transducers, absolute, 0 psi to 100 psi, 4.75 V to 5.25 V input, ratiometric 5.0 Vdc 10 %Vs to 90 %Vs output, 1/4-27 NPT, Delphi Metri-Pack 150
Current4mA
Voltage Rating5V
MountingStud
Quick Jump:
Technical Specifications
Honeywell PX2AN1XX100PAAAX technical specifications.
General
Accuracy
0.25%
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
450PSI
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Stud
Nominal Supply Current
5mA
Operating Pressure
100PSI
Operating Supply Voltage
5.25V
Output Type
Analog Voltage
Package Quantity
40
Port Style
Threaded
Pressure Type
Absolute
Primary Type
PRESSURE SENSOR
Radiation Hardening
No
Reach SVHC Compliant
No
Series
PX2
Supply Current
4mA
Termination
Connector
Voltage Rating
5V
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Honeywell PX2AN1XX100PAAAX Datasheet
Download the complete datasheet for Honeywell PX2AN1XX100PAAAX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

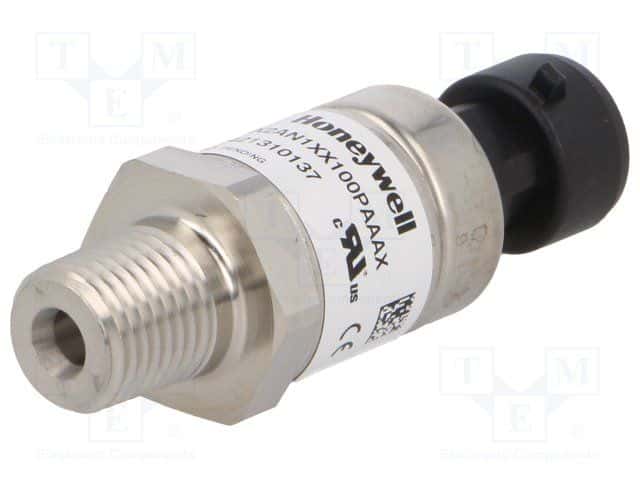

Product Images
