HONEYWELL

SCX15AN

Datasheet

Absolute Pressure Sensor 0-15PSI, 1% Acc, Wheatstone Bridge

Honeywell

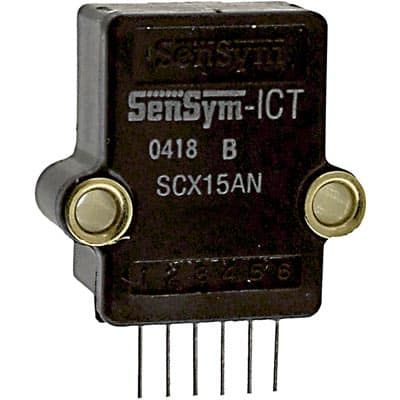

SCX15AN

Name: SCX15AN Honeywell
Brand: Honeywell
SKU: SCX15AN

Absolute Pressure Sensor 0-15PSI, 1% Acc, Wheatstone Bridge

Absolute pressure sensor with a 0 psi to 15 psi range, featuring 1% accuracy and 0.5% linearity. This board mount sensor utilizes a Wheatstone bridge analog output and operates from -40°C to 85°C. It is housed in a 6-pin SIP package with through-hole PCB mounting and a barbed port style. Key electrical specifications include a 12V reference voltage and a 20V maximum supply voltage.

PackageSIP

Voltage Rating20V

MountingThrough Hole, PCB

Quick Jump:

Technical Specifications

Honeywell SCX15AN technical specifications.

General

Accuracy	1%
Package/Case	SIP
Height	27.4mm
Input Resistance	4kR
Lead Free	Contains Lead
Lead Pitch	2.54mm
Length	27.9mm
Linearity	0.5%
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Pressure	30PSI
Max Supply Voltage	20V
Mount	Through Hole, PCB
Operating Pressure	15PSI
Output Type	Wheatstone Bridge, Analog
Output Voltage	6.2V
Package Quantity	25
Port Style	Barbed
Pressure Type	Absolute
Primary Type	PRESSURE SENSOR
Radiation Hardening	No
Reach SVHC Compliant	Unknown
Reference Voltage	12V
Response Time	100us
RoHS Compliant	Yes
Series	SCX
Termination	PC Pin
Voltage Rating	20V
DC Rated Voltage	20V
Width	27.9mm
