Technical Specifications
Honeywell SD1410-001 technical specifications.
General
Package/Case
Metal
Collector Emitter Breakdown Voltage
15V
Collector Emitter Saturation Voltage
1.1V
Collector Emitter Voltage (VCEO)
15V
Collector-emitter Voltage-Max
15V
Fall Time
75us
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
75mW
Mount
Through Hole
Number of Elements
1
Orientation
Top View
Packaging
Bulk
Polarity
NPN
Power Dissipation
75mW
RoHS Compliant
No
Viewing Angle
24°
Wavelength
880nm
Compliance
RoHS
Not Compliant
Datasheet
Honeywell SD1410-001 Datasheet
Download the complete datasheet for Honeywell SD1410-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

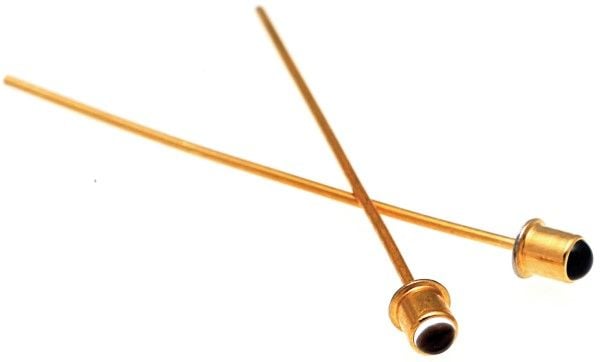

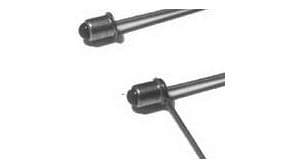

Product Images
