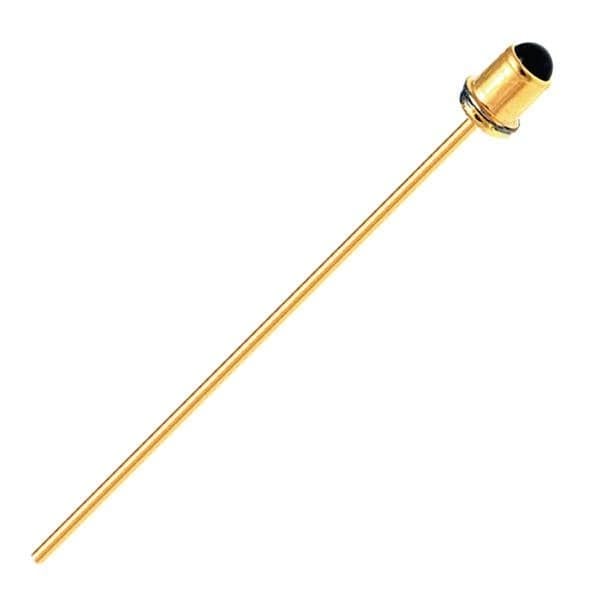

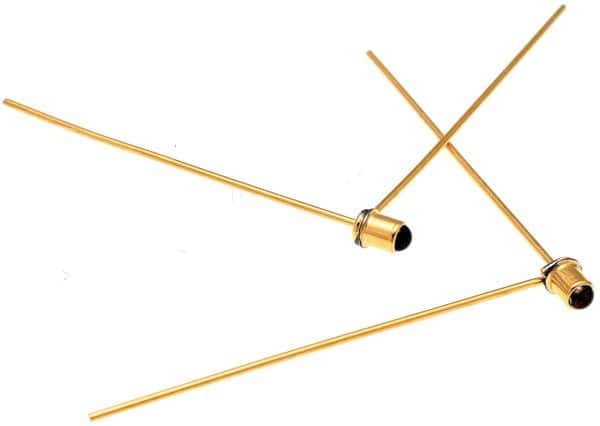

The SD1410-001L is a single-element NPN phototransistor from Honeywell. It features a collector-emitter breakdown voltage of 15V and a saturation voltage of 1.1V. The device is designed for operation within a temperature range of -55°C to 125°C and has a maximum power dissipation of 75mW. The SD1410-001L is available in a metal package with a through-hole mount.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SD1410-001L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SD1410-001L technical specifications.
| Package/Case | Metal |
| Collector Emitter Breakdown Voltage | 15V |
| Collector Emitter Saturation Voltage | 1.1V |
| Collector Emitter Voltage (VCEO) | 15V |
| Collector-emitter Voltage-Max | 15V |
| Fall Time | 75us |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 75mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Orientation | Top View |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 75mW |
| RoHS Compliant | No |
| Viewing Angle | 24° |
| Wavelength | 880nm |
| RoHS | Not Compliant |
