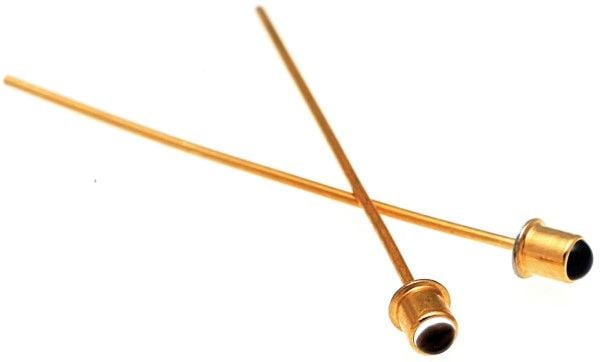

The SD1410-003 is a phototransistor with a collector-emitter breakdown voltage of 15V and a collector-emitter saturation voltage of 1.1V. It has a maximum power dissipation of 75mW and operates over a temperature range of -55°C to 125°C. The device is packaged in a metal case and is available in a through-hole configuration. It is not RoHS compliant and does not meet SVHC requirements.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SD1410-003 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SD1410-003 technical specifications.
| Package/Case | Metal |
| Collector Emitter Breakdown Voltage | 15V |
| Collector Emitter Saturation Voltage | 1.1V |
| Collector Emitter Voltage (VCEO) | 15V |
| Collector-emitter Voltage-Max | 15V |
| Fall Time | 75us |
| Max Breakdown Voltage | 15V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 75mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Orientation | Top View |
| Output Current | 40uA |
| Packaging | Bulk |
| Polarity | NPN |
| Power Consumption | 75mW |
| Power Dissipation | 75mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Viewing Angle | 24° |
| Wavelength | 880nm |
| RoHS | Not Compliant |
