Technical Specifications
Honeywell SD1440-004L technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Diameter | 1.57mm |
| Fall Time | 15us |
| Length | 25.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 75mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Orientation | Top View |
| Packaging | Bulk |
| Polarity | NPN |
| Power Consumption | 75mW |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 50V |
| RoHS Compliant | No |
| Viewing Angle | 24° |
| Wavelength | 935nm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Honeywell SD1440-004L Datasheet
Download the complete datasheet for Honeywell SD1440-004L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

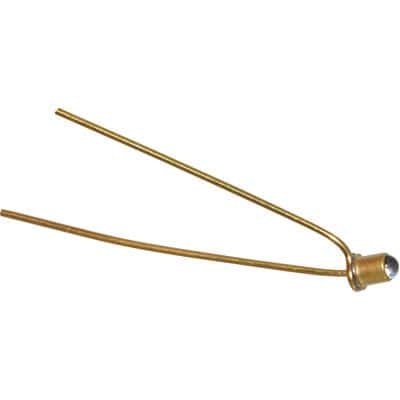

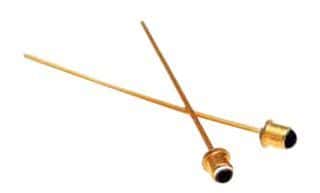

Product Images
