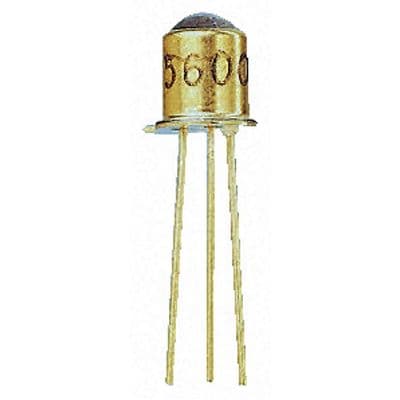

The SD5421-002 is a PIN diode from Honeywell with a current rating of 40A and a maximum reverse voltage of 75V. It has a maximum power dissipation of 150mW and operates over a temperature range of -55°C to 125°C. The diode is packaged in a TO-46, 3-pin package and is suitable for through-hole or PCB mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SD5421-002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SD5421-002 technical specifications.
| Package/Case | TO-46 |
| Current Rating | 40A |
| Diode Type | PIN |
| Fall Time | 15ns |
| Height | 6.27mm |
| Length | 5.56mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Max Reverse Voltage (DC) | 75V |
| Mount | Through Hole, PCB |
| Polarity | NPN |
| Power Consumption | 150mW |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 15ns |
| Reverse Voltage (DC) | 75V |
| RoHS Compliant | Yes |
| Viewing Angle | 18° |
| Width | 5.56mm |
| RoHS | Not CompliantNo |
