Technical Specifications
Honeywell SD5491-003 technical specifications.
General
Package/Case
TO-18
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Fall Time
2us
Max Breakdown Voltage
30V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
150mW
Mount
Through Hole
Number of Elements
1
Orientation
Top View
Packaging
Bulk
Polarity
NPN
Power Dissipation
150mW
RoHS Compliant
No
Viewing Angle
12°
Wavelength
880nm
Compliance
RoHS
Not Compliant
Datasheet
Honeywell SD5491-003 Datasheet
Download the complete datasheet for Honeywell SD5491-003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

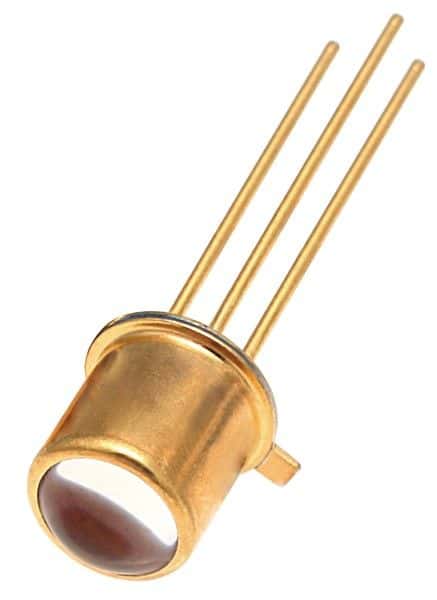

Product Images
