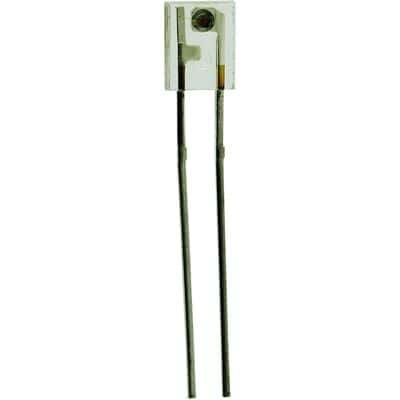

General purpose NPN phototransistor with radial package, through-hole mounting, and side-view orientation. Features a 30V collector-emitter voltage, 3.6mA maximum collector current, and 100mW maximum power dissipation. Operates across a temperature range of -40°C to 85°C with a 935nm wavelength sensitivity and a 50° viewing angle. Fall time is 15000ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SDP8406-002 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SDP8406-002 technical specifications.
| Package/Case | Radial |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 15000ns |
| Height | 5.72mm |
| Lead Free | Lead Free |
| Length | 4.45mm |
| Max Collector Current | 3.6mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Orientation | Side View |
| Output Current | 3.6mA |
| Package Material | Plastic |
| Packaging | Bulk |
| Polarity | NPN |
| Power Consumption | 100mW |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Viewing Angle | 50° |
| Wavelength | 935nm |
| Width | 2.28mm |
| RoHS | Not CompliantNo |
