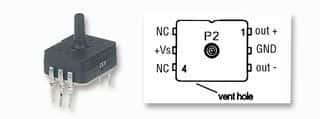

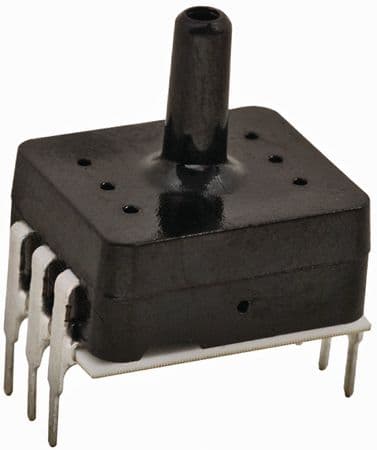

Board mount pressure sensor with a 0 to 5 psi gauge pressure range. Features 1% accuracy and 0.2% linearity, operating from -40°C to 85°C. Utilizes a Wheatstone bridge analog output with a 60mV output voltage at a 12V reference voltage. Housed in a 6-pin DIP package with PC pin termination for PCB through-hole mounting. Input resistance is 4kR, with a maximum operating pressure of 20 psi and a maximum supply voltage of 20V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SDX05G2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SDX05G2 technical specifications.
| Accuracy | 1% |
| Package/Case | DIP |
| Input Resistance | 4kR |
| Linearity | 0.2% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 20PSI |
| Max Supply Voltage | 20V |
| Mount | PCB, Through Hole |
| Operating Pressure | 5PSI |
| Output | ANALOG |
| Output Type | Wheatstone Bridge, Analog |
| Output Voltage | 60mV |
| Package Quantity | 25 |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 12V |
| Response Time | 100us |
| RoHS Compliant | Yes |
| Series | SDX |
| Termination | PC Pin |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
| Width | 13.97mm |
| RoHS | Compliant |
