Omnipolar Hall Effect Sensor IC, designed for surface mount applications in a 3-pin SOT-23 package. Features a minimum supply voltage of 2.2V and a maximum of 5.5V, with a typical operating voltage of 5V. Delivers a maximum output current of 5mA and operates within a temperature range of -40°C to 85°C. This RoHS compliant component offers a digital output and is supplied in tape and reel packaging.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell SL353LT technical specifications.
General
| Package/Case | SOT-23 |
| Duty Cycle | 0.013% |
| Height | 1.2mm |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5mA |
| Max Supply Current | 3uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.5mA |
| Operating Supply Current | 9mA |
| Operating Supply Voltage | 5V |
| Output Current | 1.8uA |
| Output Type | Digital |
| Output Voltage | 250mV |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SL353 |
| Termination | SMD/SMT |
| Type | Integrated Circuit (IC) |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell SL353LT Datasheet
Download the complete datasheet for Honeywell SL353LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

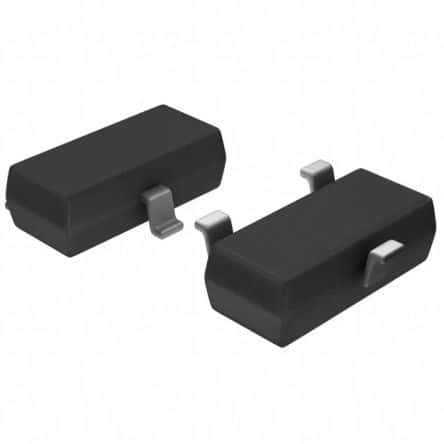

Product Images
