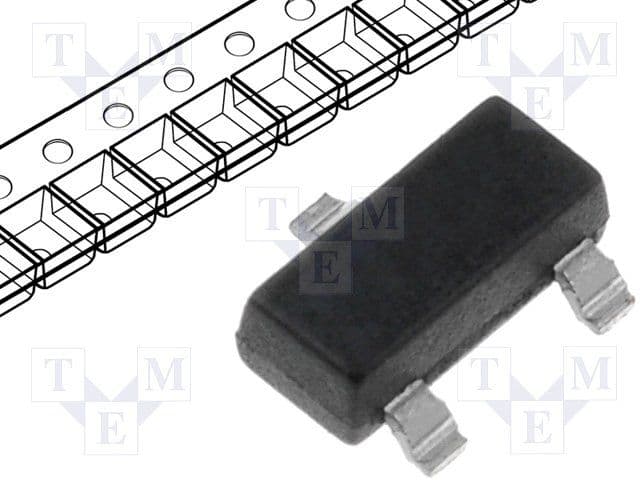

Surface mount linear, latching, omnipolar Hall effect sensor IC with a 20mA output current. Operates from 3V to 24V supply voltage, featuring a 3-Pin SOT-23 package with dimensions of 2.9mm (L) x 1.6mm (W) x 1.45mm (H). Offers a wide operating temperature range of -40°C to 150°C and a leakage current of 10µA. Packaged in tape and reel for automated assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SS360NT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23 |
| Depth | 1.2mm |
| Height | 1.45mm |
| Leakage Current | 10uA |
| Length | 2.9mm |
| Logic Function | Latch |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Supply Current | 6mA |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 6mA |
| Operating Supply Current | 3.5mA |
| Output Current | 20mA |
| Output Type | Digital |
| Output Voltage | 26V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Switching Current | 20mA |
| Termination | Solder |
| Type | Integrated Circuit (IC) |
| Width | 1.6mm |
| RoHS | Compliant |
