Linear Hall Effect Sensor IC, SOT-23 package, offering analog voltage output. Operates with a supply voltage range of 2.7V to 6.5V, featuring a nominal supply current of 10mA. Maximum output current is 1.5mA, with a response time of 3µs. Designed for surface mounting, this component functions across an operating temperature range of -40°C to 150°C.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell SS39ET technical specifications.
General
| Package/Case | SOT-23 |
| Depth | 1.2mm |
| Height | 1.45mm |
| Leakage Current | 10uA |
| Length | 2.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5mA |
| Max Supply Current | 10mA |
| Max Supply Voltage (DC) | 8V |
| Min Supply Voltage (DC) | 500mV |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 10mA |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 6V |
| Output Current | 1.5mA |
| Output Type | Analog Voltage |
| Output Voltage | 1.75mV |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Response Time | 3us |
| RoHS Compliant | No |
| Series | SS39ET |
| Switching Current | 1.5mA |
| Termination | Solder |
| Type | Integrated Circuit (IC) |
| Width | 1.6mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell SS39ET Datasheet
Download the complete datasheet for Honeywell SS39ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

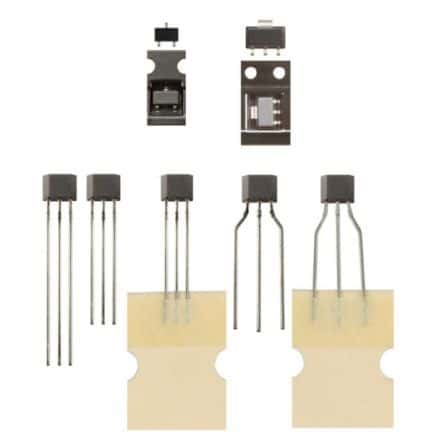

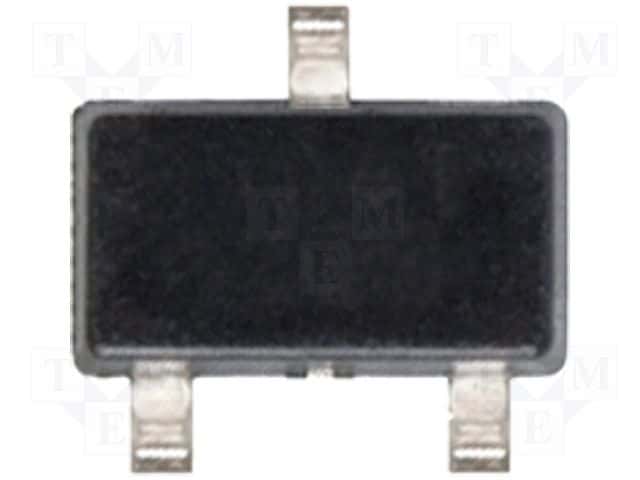

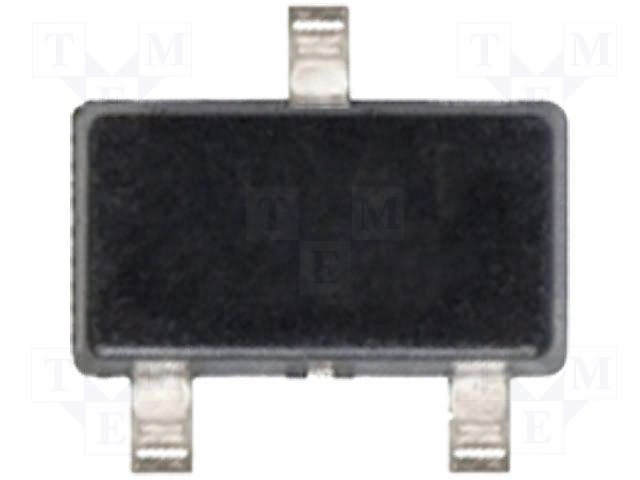

Product Images
