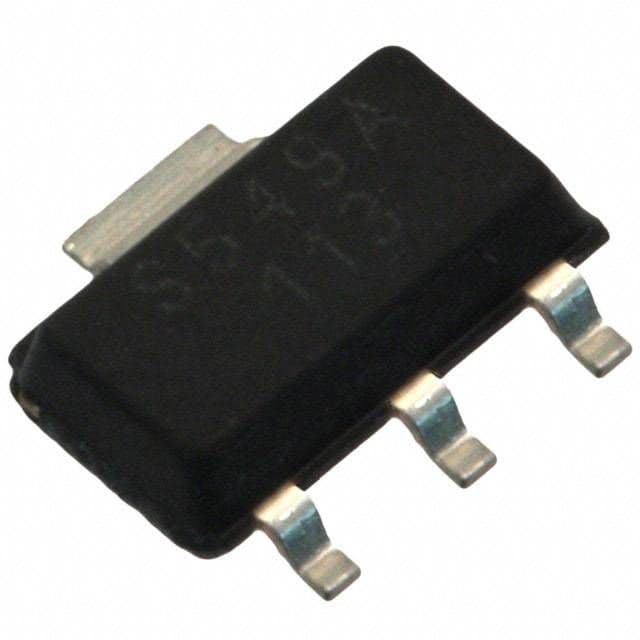

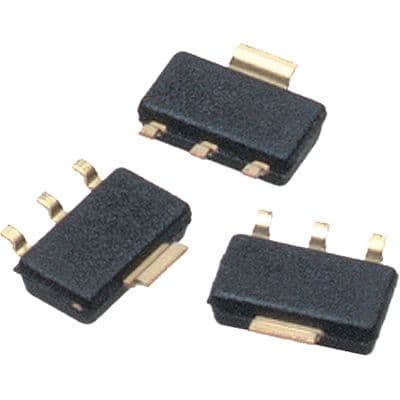

Surface mount magnetoresistive sensor IC in a SOT-89 package, featuring a 100kHz bandwidth and digital output. Operates from a 3.8V to 30V supply voltage with a nominal supply current of 11mA. Offers a maximum output current of 20mA and a maximum output voltage of 400mV. Designed for operation between -40°C and 150°C, with dimensions of 4.4mm length, 2.5mm width, and 1.25mm height. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SS552MT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SS552MT technical specifications.
| Bandwidth | 100kHz |
| Package/Case | SOT-89 |
| Color | Black |
| Height | 1.25mm |
| Leakage Current | 10uA |
| Length | 4.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Voltage | 400mV |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 3.8V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3.8V |
| Mount | Surface Mount |
| Nominal Supply Current | 11mA |
| Operating Supply Current | 11mA |
| Output Current | 20mA |
| Output Type | Digital |
| Output Voltage | 400mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 11mA |
| Type | Integrated Circuit (IC) |
| Width | 2.5mm |
| RoHS | Compliant |
Download the complete datasheet for Honeywell SS552MT to view detailed technical specifications.
