The SS94A1F is a linear position sensor from Honeywell, packaged in a SIP format. It operates over a temperature range of -40°C to 125°C and is compliant with RoHS regulations. The sensor has a maximum supply voltage of 12.6V and a minimum supply voltage of 6.6V, with a maximum output current of 1mA. It is available in bulk packaging with 10 units per package.
PackageSIP
Current30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell SS94A1F technical specifications.
General
| Package/Case | SIP |
| Depth | 1.78mm |
| Lead Free | Lead Free |
| Length | 7.62mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1mA |
| Max Supply Voltage | 12.6V |
| Min Supply Voltage | 6.6V |
| Mount | Through Hole |
| Output Current | 1mA |
| Output Type | Analog Voltage |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SS94 |
| Supply Current | 30mA |
| Switching Current | 2mA |
| Termination | PCB |
| Width | 15.24mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell SS94A1F Datasheet
Download the complete datasheet for Honeywell SS94A1F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

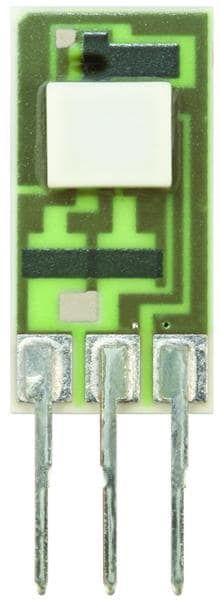

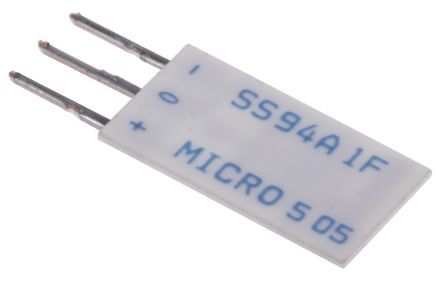

Product Images
