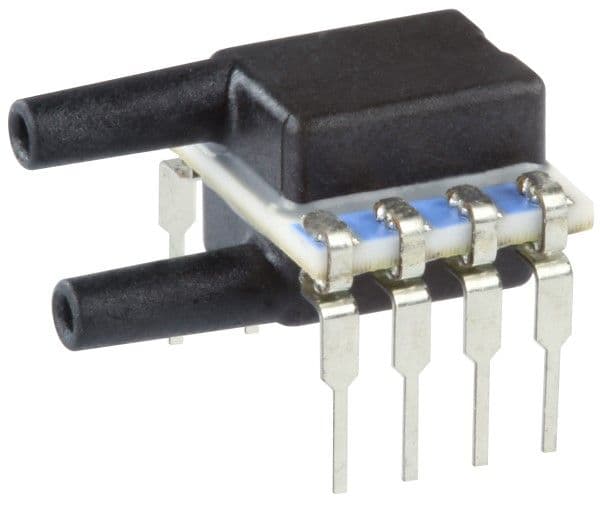

The TruStability SSC differential pressure sensor is a DIP-8 package device with an accuracy of 0.25%. It operates over a temperature range of -40°C to 85°C and is suitable for use in environments with pressures up to 12.65PSI. The sensor provides an analog voltage output and features a barbless port style. It is part of the TruStability SSC series and meets the requirements for general use.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SSCDJJN010NDAA5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SSCDJJN010NDAA5 technical specifications.
| Accuracy | 0.25% |
| Package/Case | DIP |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 12.65PSI |
| Operating Pressure | 0.36PSI |
| Output Type | Analog Voltage |
| Port Style | Barbless |
| Pressure Type | Differential |
| Series | TruStability® SSC |
| Termination | PC Pin |
| RoHS | Compliant |
Download the complete datasheet for Honeywell SSCDJJN010NDAA5 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
