Honeywell
SSCDRRN005PDAA3
Pressure Sensor 0.33V to 2.97V -5psi to 5psi Differential Medical 8-Pin DIP Module
PackageDIP
Current1.6mA
Quick Jump:
Technical Specifications
Honeywell SSCDRRN005PDAA3 technical specifications.
General
Accuracy
0.25%
Package/Case
DIP
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
30PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.3V
Min Supply Voltage
3V
Nominal Supply Current
1.6mA
Operating Pressure
5PSI
Output Type
Analog, Analog Voltage
Output Voltage
2.97V
Port Style
Barbed
Pressure Type
Differential
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® SSC
Supply Current
1.6mA
Termination
PC Pin
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell SSCDRRN005PDAA3 Datasheet
Download the complete datasheet for Honeywell SSCDRRN005PDAA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

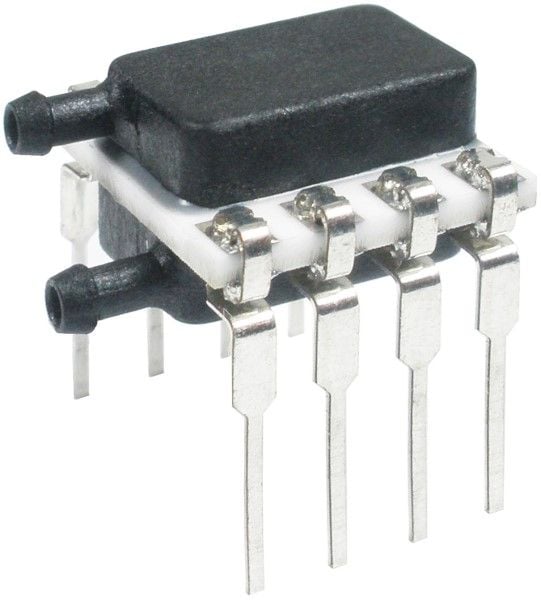

Product Images
