The TruStability SSC pressure sensor is a vented gauge device with an accuracy of 0.25%. It operates within a temperature range of -40°C to 85°C and is designed for use with a supply voltage of 5V. The sensor has a response time of 1ms and is RoHS compliant. It is available in an SMD/SMT package type, suitable for board mount applications.
PackageSMD/SMT
Current2mA
Quick Jump:
Technical Specifications
Honeywell SSCMANN100PGAA5 technical specifications.
General
| Accuracy | 0.25% |
| Package/Case | SMD/SMT |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 250PSI |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Nominal Supply Current | 2mA |
| Operating Pressure | 100PSI |
| Operating Supply Voltage | 5V |
| Output Type | Analog, Analog Voltage |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | TruStability® SSC |
| Supply Current | 2mA |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell SSCMANN100PGAA5 Datasheet
Download the complete datasheet for Honeywell SSCMANN100PGAA5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

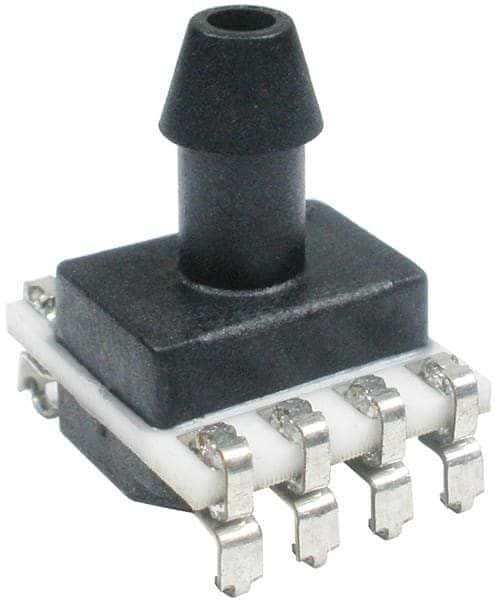

Product Images
