Honeywell
SSCMRNN015PAAA3
Peizoresistive Sensor, Absolute, 0Psi Min, 15Psi Max, 0.25%, Rectangular, Surface Mount, ROHS COMPLIANT, CERAMIC, SMT-8
PackageSMD/SMT
Current1.6mA
Quick Jump:
Technical Specifications
Honeywell SSCMRNN015PAAA3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
30PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.3V
Min Supply Voltage
3V
Nominal Supply Current
1.6mA
Operating Pressure
15PSI
Output Type
Analog Voltage, Analog, Voltage
Output Voltage
2.97V
Package Quantity
20
Port Style
Barbed
Pressure Type
Absolute
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® SSC
Supply Current
1.6mA
Termination
SMD/SMT
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell SSCMRNN015PAAA3 Datasheet
Download the complete datasheet for Honeywell SSCMRNN015PAAA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

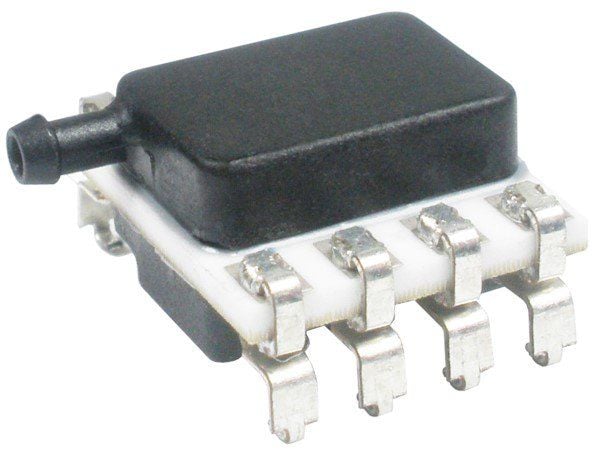

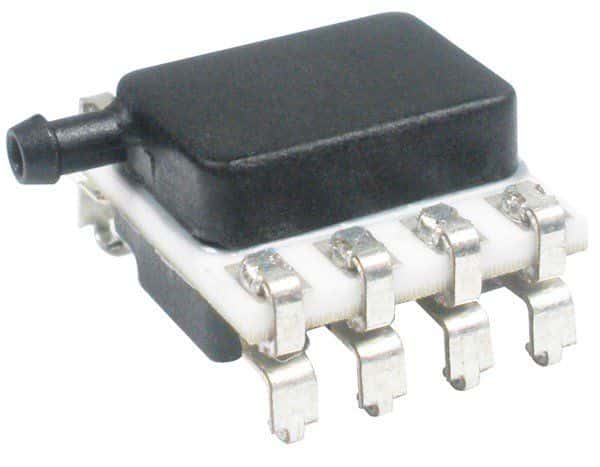

Product Images
