Honeywell
SSCSNBN010NDAA5
Peizoresistive Sensor, Differential, -.361Psi Min, 0.361Psi Max, 0.25%, Through Hole Mount, ROHS COMPLIANT, SIP-4
PackageSIP
Current2mA
Quick Jump:
Technical Specifications
Honeywell SSCSNBN010NDAA5 technical specifications.
General
Accuracy
0.25%
Package/Case
SIP
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
12.65PSI
Nominal Supply Current
2mA
Operating Pressure
0.36PSI
Operating Supply Voltage
5V
Output Type
Analog Voltage, Analog
Port Style
Barbless
Pressure Type
Differential
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® SSC
Supply Current
2mA
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Honeywell SSCSNBN010NDAA5 Datasheet
Download the complete datasheet for Honeywell SSCSNBN010NDAA5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

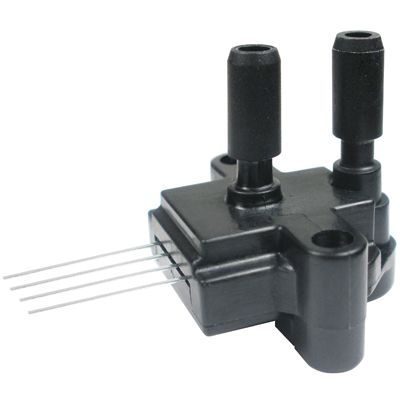

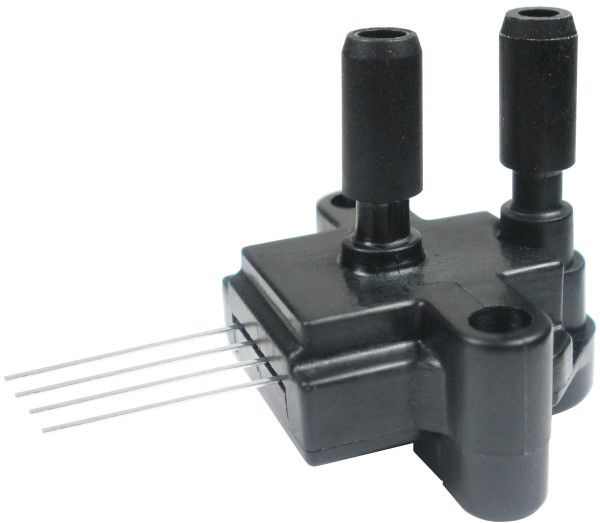

Product Images
