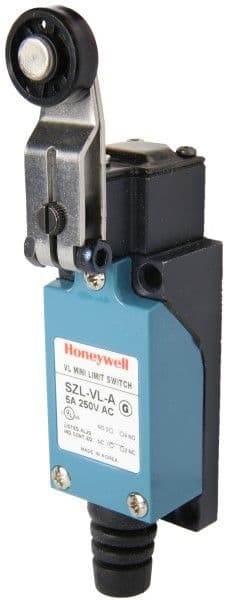

SPDT limit switch with rotary side roller lever actuator, featuring screw mounting and cable termination. Rated for 5A at 250VAC / 125VDC, with an operating force of 5.88N and a mechanical life of 10 million cycles. This general-purpose switch operates within a temperature range of -20°C to 60°C and offers IP64, water-resistant, and dust-tight protection. Approvals include UL and CE, with RoHS compliance.
Current Rating5A
MountingChassis Mount, Surface Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell SZL-VL-A technical specifications.
General
Actuator Type
Rotary
Approvals
UL, CE
Current Rating
5A
Depth
41.2mm
Height
125.5mm
Length
28mm
Max Current Rating
5A
Max Operating Temperature
60°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-20°C
Mount
Chassis Mount, Surface Mount, Panel, Screw
Nominal Supply Current
5A
Number of Poles
1
Number of Positions
2
Operating Force
588N
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Ratings
IP64, Water Resistant, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
VL
Switch Function
On-Mom
Termination
Cable
Throw Configuration
SPDT
Type
General Purpose
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Width
28mm
Compliance
RoHS
Compliant
Datasheet
Honeywell SZL-VL-A Datasheet
Download the complete datasheet for Honeywell SZL-VL-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
