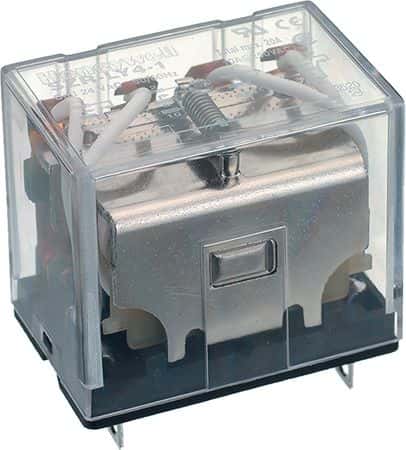

The SZRLY41AC110120V relay from Honeywell is a general-purpose 4PDT electromechanical switch with a current rating of 10A and a maximum voltage rating of 125V DC or 250V AC. It has a coil resistance of 2.2kR and a coil current of 21.8mA. The relay is socket mount and has a termination of solder. It has a power consumption of 2.5W and a switching current of 10A. The operate and release times are both 25ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SZRLY41AC110120V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 21.8mA |
| Coil Resistance | 2.2kR |
| Coil Voltage (AC) | 110.12kV |
| Contact Material | Silver |
| Current Rating | 10A |
| Max Current Rating | 10A |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socket |
| Operate Time | 25ms |
| Power Consumption | 2.5W |
| Release Time | 25ms |
| Switching Current | 10A |
| Termination | Solder |
| Throw Configuration | 4PDT |
| Weight | 35g |
| RoHS | Compliant |
