Peizoresistive pressure sensor with a 0 to 150 PSI operating range and 245 PSI maximum pressure. Features a Wheatstone bridge output, barbed port style, and through-hole mounting with DIP packaging. Operates from -40°C to 125°C with 0.15% accuracy. RoHS compliant, utilizing a 12V supply voltage and 600µA nominal supply current.
PackageDIP
Current600uA
Quick Jump:
Technical Specifications
Honeywell TBPDANN150PGUCV technical specifications.
General
| Accuracy | 0.15% |
| Package/Case | DIP |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 245PSI |
| Nominal Supply Current | 600uA |
| Operating Pressure | 150PSI |
| Operating Supply Voltage | 12V |
| Output Type | Wheatstone Bridge |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TBP |
| Supply Current | 600uA |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell TBPDANN150PGUCV Datasheet
Download the complete datasheet for Honeywell TBPDANN150PGUCV to view detailed technical specifications.
No datasheet is available for this part.

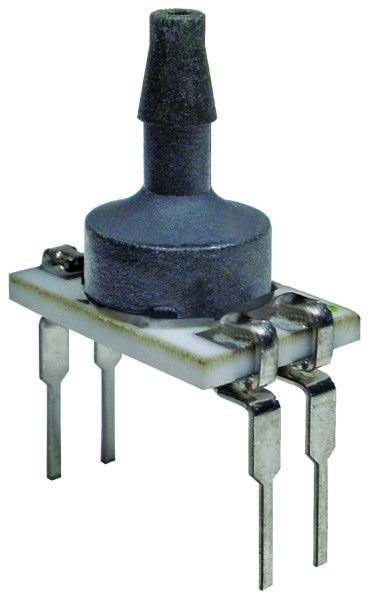

Product Images
