Honeywell
TBPDANS015PGUCV
Peizoresistive Sensor, Gage, 0Psi Min, 15Psi Max, Through Hole Mount, ROHS COMPLIANT, DIP-4
PackageDIP
Current600uA
Quick Jump:
Technical Specifications
Honeywell TBPDANS015PGUCV technical specifications.
General
Accuracy
0.15%
Package/Case
DIP
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
60PSI
Max Supply Current
1mA
Max Supply Voltage
12V
Min Supply Voltage
1.5V
Nominal Supply Current
600uA
Operating Pressure
15PSI
Operating Supply Voltage
5V
Output Type
Wheatstone Bridge
Port Style
Barbed
Pressure Type
Vented Gauge
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TBP
Supply Current
600uA
Termination
PC Pin
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Honeywell TBPDANS015PGUCV Datasheet
Download the complete datasheet for Honeywell TBPDANS015PGUCV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

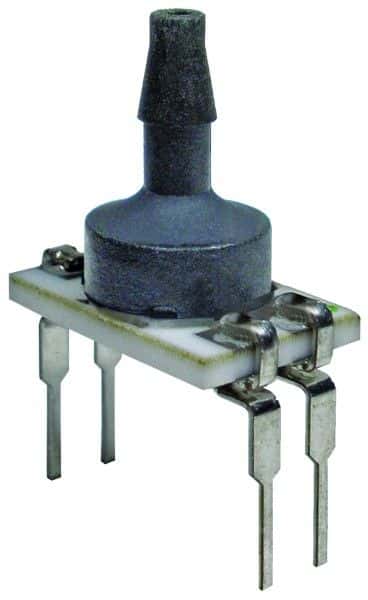

Product Images
