Technical Specifications
Honeywell TSCDJJN001PDUCV technical specifications.
General
| Accuracy | 0.2% |
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 12.5PSI |
| Nominal Supply Current | 600uA |
| Operating Pressure | 1PSI |
| Output Type | Wheatstone Bridge |
| Port Style | Barbless |
| Pressure Type | Differential |
| Primary Type | PRESSURE SENSOR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | TruStability® TSC |
| Supply Current | 600uA |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell TSCDJJN001PDUCV Datasheet
Download the complete datasheet for Honeywell TSCDJJN001PDUCV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

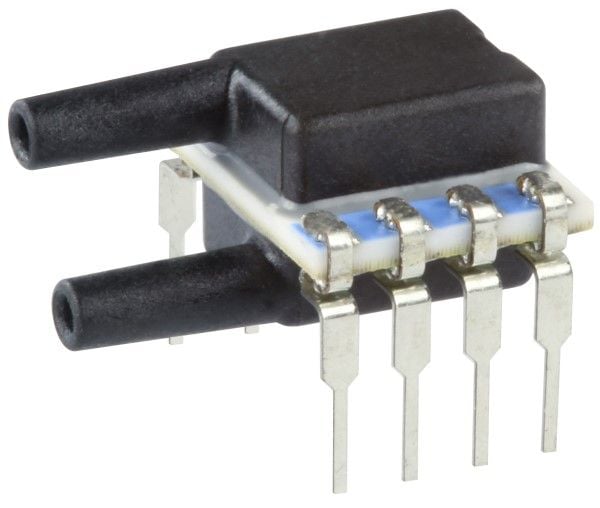

Product Images
