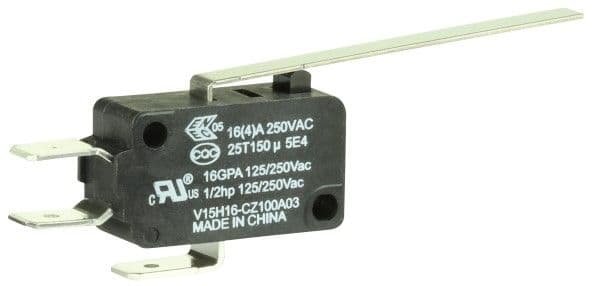

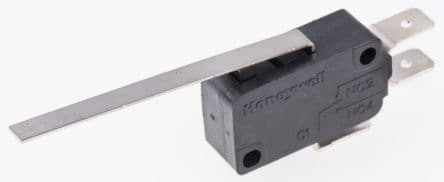

The V15H16-CZ100A03 is a silver-cadmium SPDT switch with a contact current rating of 16A and a voltage rating of 250V AC. It has a maximum operating temperature of 150°C and a minimum operating temperature of -25°C. The switch is screw mount and has a throw configuration of SPDT. It is not RoHS compliant and is not sealable.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V15H16-CZ100A03 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 595mm |
| Contact Current Rating | 16A |
| Contact Material | Silver, Cadmium |
| Current Rating | 16A |
| Differential Travel | 24mm |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -25°C |
| Operating Force | 30gf |
| Operating Position | 0.118inch |
| Overtravel | 26mm |
| Package Quantity | 1000 |
| Pretravel | 64mm |
| RoHS Compliant | No |
| Sealable | No (Without) |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Weight | 5g |
| RoHS | Not Compliant |
