Honeywell
V15T16-CC200
Snap Acting/Limit Switch, SPST, Momentary, 2.4mm, Quick Connect Terminal, Pin Plunger Actuator, Panel Mount
MountingChassis Mount
Quick Jump:
Technical Specifications
Honeywell V15T16-CC200 technical specifications.
General
Electrical Life
50000Cycles
Material
Plastic
Max Operating Temperature
125°C
Mechanical Life
5000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Force
200gf
Operating Position
0.02inch
Packaging
Tray
Pretravel
16mm
RoHS Compliant
No
Sealable
No (Without)
Series
V15
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
250V
Weight
5g
Compliance
RoHS
Not Compliant
Datasheet
Honeywell V15T16-CC200 Datasheet
Download the complete datasheet for Honeywell V15T16-CC200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

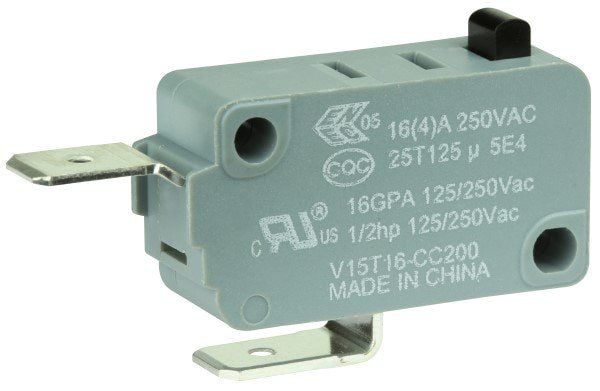

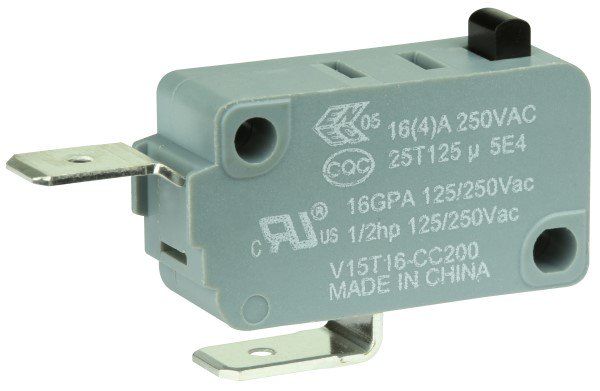

Product Images
