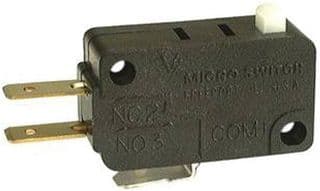

SPDT momentary snap acting switch featuring quick connect terminals and a pin plunger actuator for panel mounting. Rated for 16A at 250V AC, with a mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles. Operating force is 300gf, with an operating position of 0.02 inches. Constructed from plastic with silver cadmium contacts, it operates within a temperature range of -25°C to 125°C.
Current Rating16A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell V15T16-CZ300-K technical specifications.
General
| Contact Material | Silver, Cadmium |
| Current Rating | 16A |
| Depth | 10.3mm |
| Electrical Life | 50000Cycles |
| Length | 39.7mm |
| Material | Plastic |
| Max Current Rating | 16A |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount, Panel, Screw |
| Operating Force | 300gf |
| Operating Position | 0.02inch |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Tray |
| Pretravel | 16mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V15 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Weight | 5g |
Compliance
| RoHS | Compliant |
