The V15T16-EZ100A02 is a 16A SPDT on-mom switch from Honeywell, rated for 250V AC and operating within a temperature range of -25°C to 125°C. It features a silver and cadmium contact material and a mechanical life of 5 million cycles. The switch is designed for chassis mount applications and has a quick connect termination.
Current Rating16A
MountingChassis Mount
Quick Jump:
Technical Specifications
Honeywell V15T16-EZ100A02 technical specifications.
General
| Actuator Type | LEAF LEVER |
| Contact Current Rating | 16A |
| Contact Material | Silver, Cadmium |
| Current Rating | 16A |
| Electrical Life | 50000Cycles |
| Max Operating Temperature | 125°C |
| Mechanical Life | 5000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount |
| Operating Force | 0.98N |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Series | V15 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell V15T16-EZ100A02 Datasheet
Download the complete datasheet for Honeywell V15T16-EZ100A02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

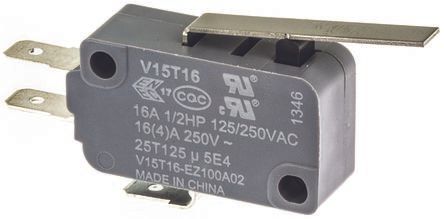

Product Images
