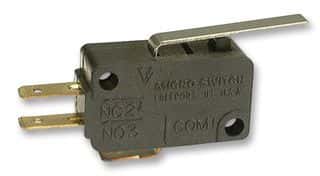

SPDT momentary snap acting/limit switch featuring a 0.5A, 125VDC rating with a 4.75mm quick connect terminal and panel mount. This switch offers a 11A maximum current rating and 277V AC maximum voltage rating, with a DC rated voltage of 125V. It boasts a 1,000,000 cycle mechanical life and 100,000 cycle electrical life, operating between -40°C and 82°C. The straight lever actuator extends 356mm, with pretravel at 305mm and overtravel at 170mm. Approvals include UL, CSA, and VDE, and the unit is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V7-1B17D8-022 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 356mm |
| Actuator Type | STRAIGHT LEVER |
| Approvals | UL, CSA, VDE |
| Contact Current Rating | 600mA |
| Contact Material | Gold, Silver |
| Current Rating | 11A |
| Depth | 10.2mm |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 11A |
| Max Operating Temperature | 82°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Position | 0.041inch |
| Orientation | Straight |
| Overtravel | 170mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 305mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 277V |
| DC Rated Voltage | 125V |
| Weight | 8g |
| RoHS | Compliant |
