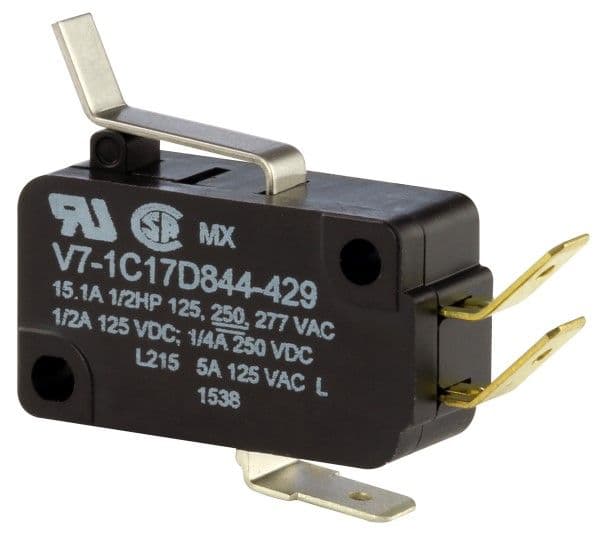

SPDT momentary snap acting switch featuring a special lever actuator with a 166mm length and 114mm overtravel. This panel mount switch offers a 15.1A current rating at 125V AC and 125V DC, with silver contacts and quick connect terminals. It operates within a temperature range of -40°C to 82°C and boasts a mechanical life of 10,000,000 cycles.
Current Rating15.1A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell V7-1C17D844-429 technical specifications.
General
Actuator Length
166mm
Contact Material
Silver
Current Rating
15.1A
Depth
10.16mm
Electrical Life
100000Cycles
Length
36.75mm
Max Current Rating
15.1A
Max Operating Temperature
82°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Mount
Chassis Mount, Panel, Screw
Operating Force
130gf
Operating Position
0.04inch
Orientation
Straight
Overtravel
114mm
Package Quantity
100
Packaging
Bulk
Pretravel
191mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
V7
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-1C17D844-429 Datasheet
Download the complete datasheet for Honeywell V7-1C17D844-429 to view detailed technical specifications.
