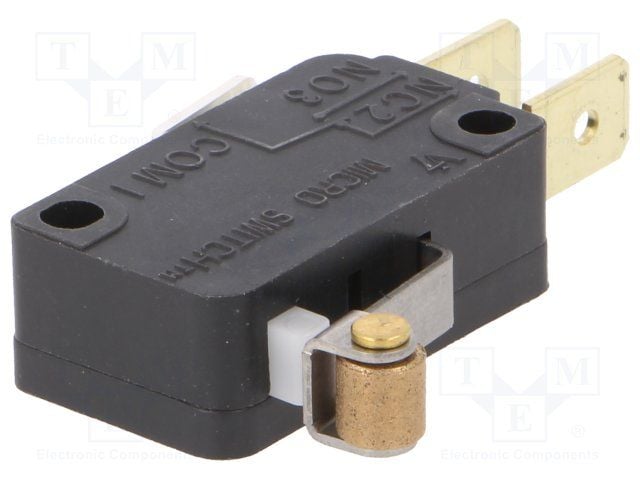

SPDT snap action switch featuring a roller lever actuator. Rated for 15.1A at 277VAC and 250VDC, with a 372.85VA rating. Offers 100,000 electrical cycles and 10,000,000 mechanical cycles. Mounting options include chassis and screw terminals, with quick connect termination. Operating force is 1.73N, and it operates within a temperature range of -40°C to 82°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V7-1C17E9-201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell V7-1C17E9-201 technical specifications.
| Actuator Length | 206mm |
| Actuator Type | ROLLER LEVER |
| Package/Case | 201 |
| Contact Current Rating | 15A |
| Contact Material | Gold, Silver |
| Current Rating | 15.1A |
| Depth | 10.16mm |
| Electrical Life | 100000Cycles |
| Length | 39.55mm |
| Max Current Rating | 15.1A |
| Max Operating Temperature | 82°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw |
| Operating Force | 172N |
| Operating Position | 0.03inch |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 119mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 277V |
| DC Rated Voltage | 125V |
| Weight | 8g |
| RoHS | Compliant |
