SPDT momentary snap acting switch featuring a plastic plunger actuator and quick connect terminals. Rated for 15A at 125VDC and 277VAC, with a DC rating of 125V. Offers a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Operating force is 147N, with a pretravel of 119mm and overtravel of 127mm. Panel and chassis mountable, with a temperature range of -40°C to 82°C.
Current Rating15A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell V7-1C18D8 technical specifications.
General
Actuator Material
Plastic
Contact Material
Silver
Current Rating
15A
Depth
10.16mm
Differential Travel
0.01inch
Electrical Life
100000Cycles
Length
38.99mm
Max Current Rating
15.1A
Max Operating Temperature
82°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Panel, Screw
Operating Force
147N
Operating Position
0.015inch
Orientation
Straight
Overtravel
127mm
Package Quantity
100
Packaging
Bulk
Pretravel
119mm
RoHS Compliant
Yes
Sealable
No (Without)
Series
V7
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-1C18D8 Datasheet
Download the complete datasheet for Honeywell V7-1C18D8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

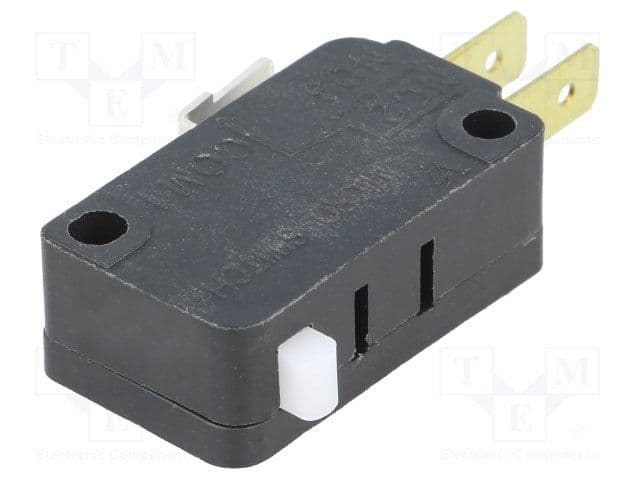

Product Images
