SPDT momentary snap acting switch with a 15A contact current rating and 125VDC voltage rating. Features gold and silver contact material, a 4.45mm operating position, and quick connect terminals. Designed for panel mounting with a straight lever actuator measuring 356mm. Offers 100,000 electrical cycles and 10,000,000 mechanical cycles, operating between -40°C and 82°C. RoHS compliant.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell V7-1C18E9-022 technical specifications.
General
| Actuator Length | 356mm |
| Actuator Type | STRAIGHT LEVER |
| Contact Current Rating | 15A |
| Contact Material | Gold, Silver |
| Current Rating | 15A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 82°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw |
| Operating Position | 0.045inch |
| Orientation | Straight |
| Overtravel | 165mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 305mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 8g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell V7-1C18E9-022 Datasheet
Download the complete datasheet for Honeywell V7-1C18E9-022 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

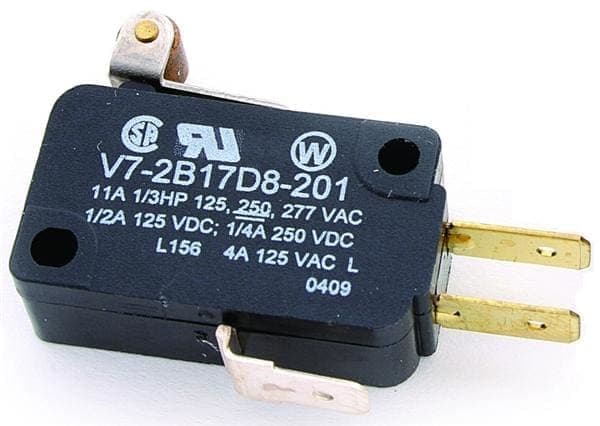

Product Images
