SPDT momentary snap acting/limit switch featuring a plastic plunger actuator and quick connect terminals. Offers a 1A contact current rating at 125V AC, with gold and silver contact material. Designed for panel or chassis mounting, it boasts a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Operating temperature range is -40°C to 82°C.
Package125
Current Rating1A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell V7-1D10D8 technical specifications.
General
Actuator Type
PIN PLUNGER
Package/Case
125
Contact Current Rating
1A
Contact Material
Gold, Silver
Current Rating
1A
Differential Travel
0.01inch
Electrical Life
100000Cycles
Max Operating Temperature
82°C
Max Voltage Rating (AC)
125V
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Mount
Chassis Mount, Panel, Screw
Operating Force
147N
Operating Position
0.015inch
Orientation
Straight
Overtravel
127mm
Package Quantity
100
Packaging
Bulk
Pretravel
119mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
V7
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-1D10D8 Datasheet
Download the complete datasheet for Honeywell V7-1D10D8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

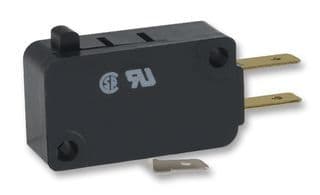

Product Images
