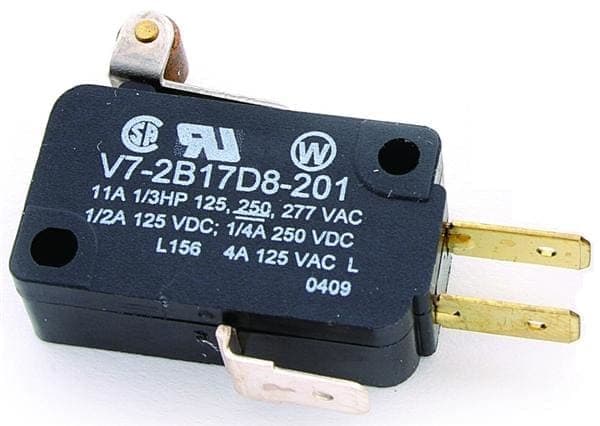

SPDT snap action switch featuring a roller lever actuator with quick connect termination. Rated for 21A at 277VAC, this switch offers a robust electrical life of 100,000 cycles and a mechanical life of 10,000,000 cycles. Operating temperature range spans from -40°C to 82°C, with screw mounting for chassis or panel installation. Contact material includes silver and cadmium, and the switch is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V7-1V19E9-207 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 340mm |
| Actuator Type | ROLLER LEVER |
| Package/Case | 207 |
| Contact Material | Silver, Cadmium |
| Current Rating | 21A |
| Depth | 10.16mm |
| Electrical Life | 100000Cycles |
| Length | 50.98mm |
| Max Current Rating | 21A |
| Max Operating Temperature | 82°C |
| Max Voltage Rating (AC) | 277V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Panel, Screw |
| Operating Position | 0.03inch |
| Orientation | Straight |
| Overtravel | 165mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 307mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Weight | 8g |
| RoHS | Compliant |
