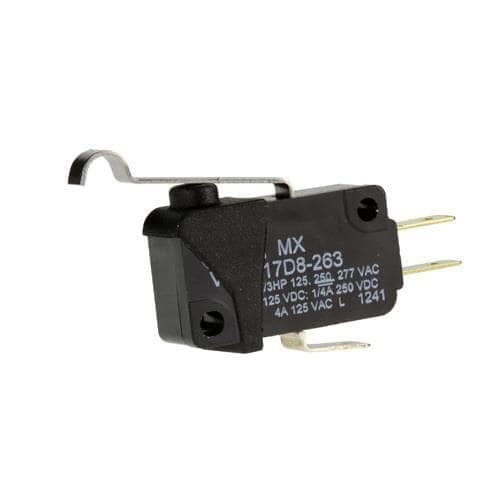

SPDT snap action switch featuring a simulated roller lever actuator with a 6A current rating at 277VAC. Offers both normally open (N.O.) and normally closed (N.C.) contacts with a quick connect termination. Designed for panel or chassis mounting via screw terminals, this switch boasts a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Operating force is 34gf, with a differential travel of 13mm and overtravel of 292mm. Suitable for operation between -40°C and 200°C, this RoHS compliant component is packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V7-1X1AD8-304 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 259mm |
| Actuator Type | ROLLER LEVER |
| Contact Current Rating | 6A |
| Contact Material | Gold, Silver |
| Current Rating | 6A |
| Depth | 10.16mm |
| Differential Travel | 13mm |
| Electrical Life | 100000Cycles |
| Length | 56.41mm |
| Max Operating Temperature | 200°C |
| Max Voltage Rating (AC) | 277V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel, Chassis Mount, Screw |
| Operating Force | 34gf |
| Operating Position | 0.03inch |
| Orientation | Straight |
| Overtravel | 292mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 56mm |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Weight | 8g |
| RoHS | Compliant |
