Honeywell
V7-1X2AD9C2
Switch Snap Action N.O. SPST Plunger Quick Connect 6A 277VAC 93.21VA 1.13N Screw Mount
Current Rating6A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Honeywell V7-1X2AD9C2 technical specifications.
General
Actuator Material
Plastic
Contact Material
Silver
Current Rating
6A
Depth
10.16mm
Length
38.99mm
Max Operating Temperature
200°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Mount
Panel, Screw
Operating Force
1.13N
Orientation
Straight
Package Quantity
100
RoHS Compliant
Yes
Series
V7
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-1X2AD9C2 Datasheet
Download the complete datasheet for Honeywell V7-1X2AD9C2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

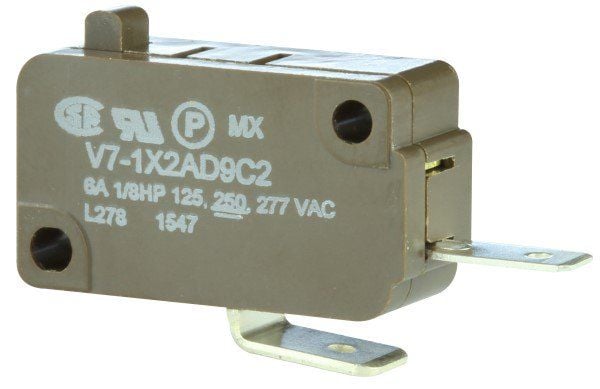

Product Images
