Honeywell
V7-1Y39E9
Snap Acting/Limit Switch, SPST, Momentary, 2.46mm, Quick Connect Terminal, Plastic Plunger Actuator, Panel Mount
Current Rating20A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell V7-1Y39E9 technical specifications.
General
| Contact Material | Silver, Cadmium |
| Current Rating | 20A |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 82°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw |
| Operating Force | 125gf |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Overtravel | 127mm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 119mm |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 277V |
| Weight | 8g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell V7-1Y39E9 Datasheet
Download the complete datasheet for Honeywell V7-1Y39E9 to view detailed technical specifications.
No datasheet is available for this part.

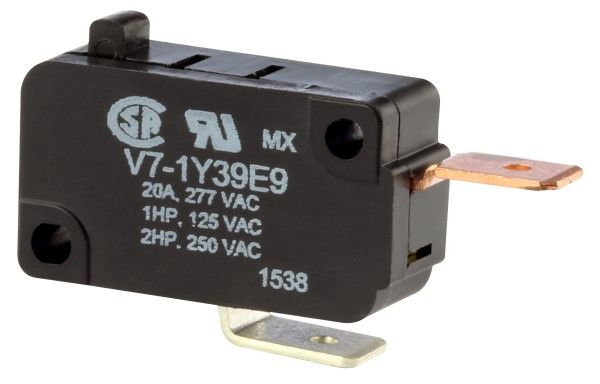

Product Images
