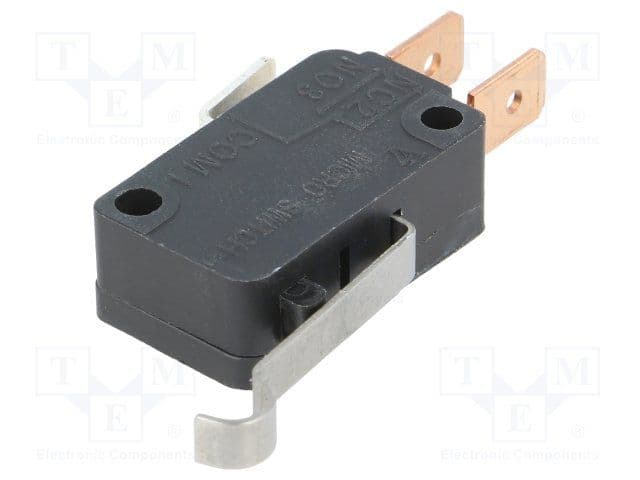

SPDT snap acting/limit switch featuring quick connect termination and a silver contact material. Designed for chassis mounting, this switch operates within a temperature range of -40°C to 85°C and requires an operating force of 136gf. It boasts a voltage rating of 277V AC and is RoHS compliant. Dimensions include a length of 50.2mm and a depth of 10.16mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V7-1Z10E9-263 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Material | Silver |
| Depth | 10.16mm |
| Length | 50.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Operating Force | 136gf |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 277V |
| RoHS | Compliant |
Download the complete datasheet for Honeywell V7-1Z10E9-263 to view detailed technical specifications.
