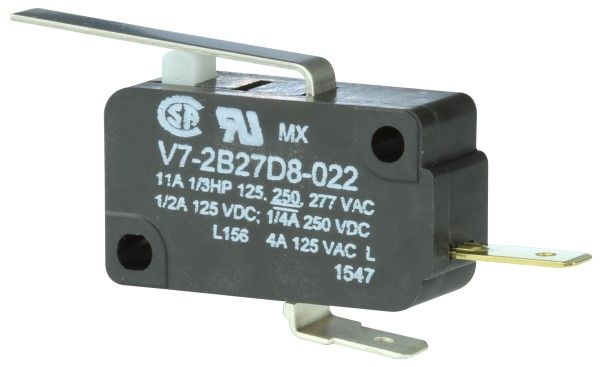

Snap acting/limit switch featuring SPST, momentary function with a 0.5A, 125VDC rating and quick connect terminals. This general-purpose switch boasts a 11A maximum current rating and a 277V AC maximum voltage rating, with a DC rated voltage of 125V. Equipped with a steel lever actuator and panel mount capability, it offers a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Operating temperature range is -40°C to 82°C, with silver contact material.
Current Rating11A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell V7-2B27D8-022 technical specifications.
General
Actuator Length
356mm
Contact Material
Silver
Current Rating
11A
Depth
10.16mm
Electrical Life
100000Cycles
Length
49.53mm
Max Current Rating
11A
Max Operating Temperature
82°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Panel, Screw
Operating Position
0.045inch
Orientation
Straight
Overtravel
170mm
Package Quantity
100
Packaging
Bulk
Pretravel
635mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
V7
Switch Function
Off-Mom
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
8g
Compliance
RoHS
Compliant
