Honeywell
V7-2B37D8
Snap Acting/Limit Switch, SPST, Momentary, 0.5A, 125VDC, 2.46mm, Quick Connect Terminal, Plastic Plunger Actuator, Panel Mount
Current Rating11A
MountingScrew
Quick Jump:
Technical Specifications
Honeywell V7-2B37D8 technical specifications.
General
Actuator Material
Plastic
Contact Material
Silver
Current Rating
11A
Depth
10.16mm
Length
38.1mm
Max Current Rating
11A
Max Operating Temperature
82°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Screw
Operating Force
0.74N
Orientation
Straight
Package Quantity
100
RoHS Compliant
Yes
Series
V7
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
277V
DC Rated Voltage
250V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-2B37D8 Datasheet
Download the complete datasheet for Honeywell V7-2B37D8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

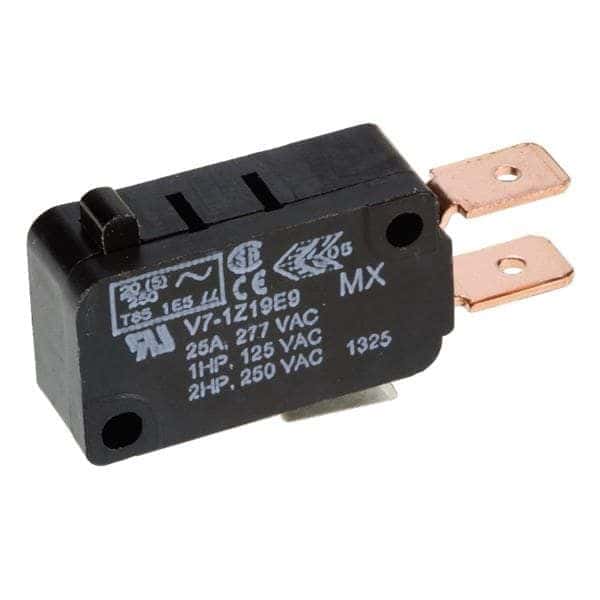

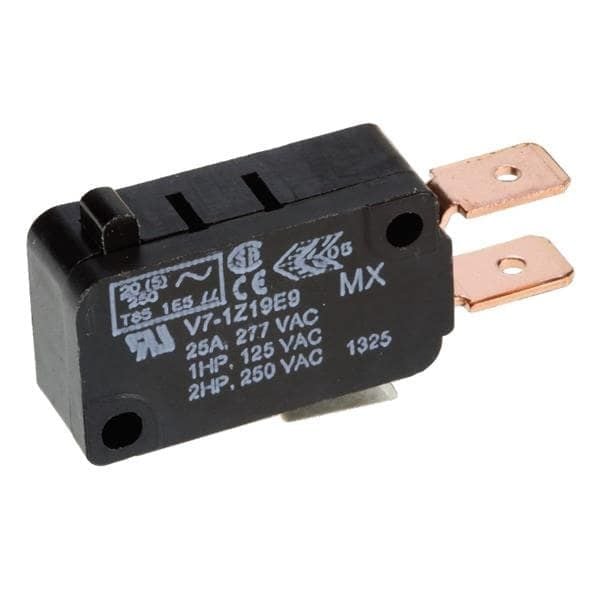

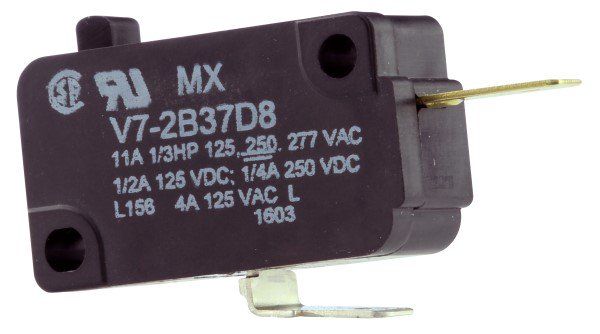

Product Images
