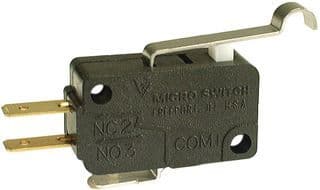

SPDT momentary snap acting switch featuring a simulated roller lever actuator and quick connect terminals. Rated for 10A at 277VAC and 250VDC, with silver contacts and a 100,000 cycle electrical life. Operates within a temperature range of -40°C to 82°C, with a 33gf operating force and 0.06-inch operating position. Chassis mountable via screw, this switch offers a 1,000,000 cycle mechanical life.
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell V7-3E19E9-263 technical specifications.
General
Actuator Length
245mm
Contact Material
Silver
Depth
10.16mm
Electrical Life
100000Cycles
Max Current Rating
10A
Max Operating Temperature
82°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Screw
Operating Force
33gf
Operating Position
0.06inch
Orientation
Straight
Overtravel
191mm
Package Quantity
100
Packaging
Bulk
Pretravel
257mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
V7
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-3E19E9-263 Datasheet
Download the complete datasheet for Honeywell V7-3E19E9-263 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
