SPDT momentary snap acting/limit switch featuring a plastic pin plunger actuator. Offers a 3A current rating at 125V AC and 277V AC max, with gold and silver contact materials. This chassis mount switch includes quick connect terminals and a straight orientation, designed for panel mounting. It boasts an electrical life of 100,000 cycles and a mechanical life of 10,000,000 cycles, operating within a temperature range of -40°C to 82°C.
Current Rating3A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell V7-5F17D8 technical specifications.
General
| Actuator Material | Plastic |
| Actuator Type | PIN PLUNGER |
| Contact Current Rating | 3A |
| Contact Material | Gold, Silver |
| Current Rating | 3A |
| Depth | 10.16mm |
| Differential Travel | 0.01inch |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Length | 38.99mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 82°C |
| Max Voltage Rating (AC) | 277V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Overtravel | 127mm |
| Packaging | Bulk |
| Pretravel | 119mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Weight | 8g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell V7-5F17D8 Datasheet
Download the complete datasheet for Honeywell V7-5F17D8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

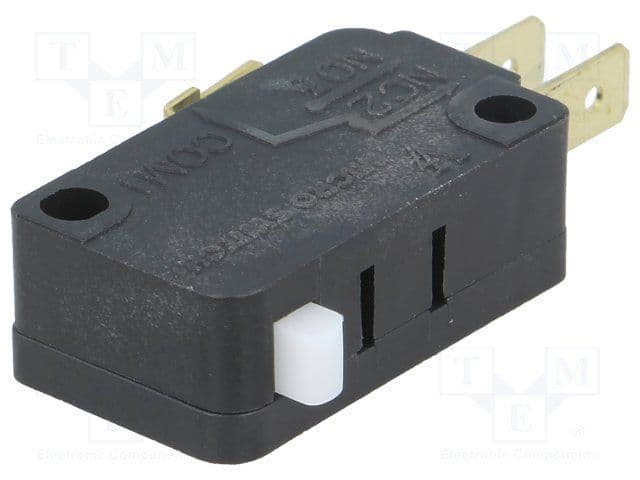

Product Images
