SPDT momentary snap acting switch featuring a plastic pin plunger actuator. Offers 11A max current rating at 125VDC and 277VAC, with a 0.5A, 125VDC rating specified for the current title. Contact material is silver, with solder terminals and panel mount capability. Operating force is 389N, with a differential travel of 0.01 inches. Mechanical life is 10,000,000 cycles, electrical life is 100,000 cycles. RoHS compliant and lead-free.
Current Rating11A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell V7-6B19D8 technical specifications.
General
Actuator Material
Plastic
Actuator Type
PIN PLUNGER
Contact Material
Silver
Current Rating
11A
Depth
10.16mm
Differential Travel
0.01inch
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
38.99mm
Max Current Rating
11A
Max Operating Temperature
82°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Operating Force
389N
Operating Position
0.015inch
Orientation
Straight
Overtravel
102mm
Package Quantity
100
Packaging
Bulk
Pretravel
119mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
V7
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-6B19D8 Datasheet
Download the complete datasheet for Honeywell V7-6B19D8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

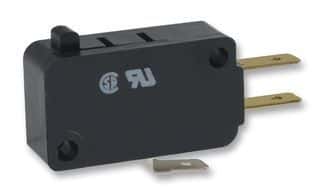

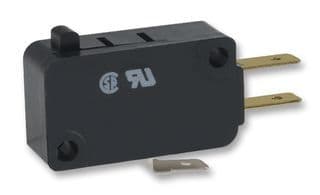

Product Images
