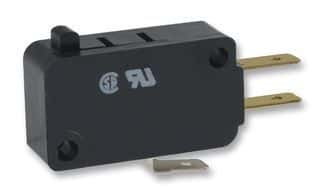

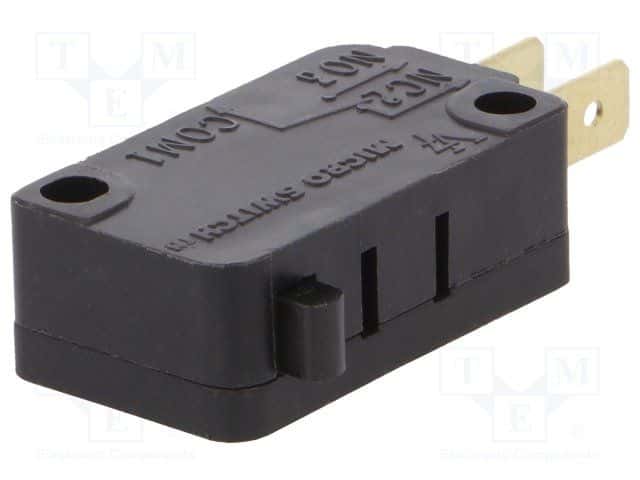

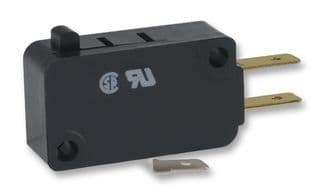

SPDT momentary snap acting/limit switch with a plastic plunger actuator. Features an 11A current rating, 125VDC/125VAC voltage rating, and quick connect terminals. Offers a mechanical life of 10,000,000 cycles and an electrical life of 100,000 cycles. Operates within a temperature range of -40°C to 85°C. RoHS compliant with gold and silver contact materials.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V7-7B17D8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell V7-7B17D8 technical specifications.
| Actuator Material | Plastic |
| Actuator Type | PLUNGER |
| Contact Current Rating | 11A |
| Contact Material | Gold, Silver |
| Current Rating | 11A |
| Depth | 10.16mm |
| Differential Travel | 0.016inch |
| Electrical Life | 100000Cycles |
| Height | 23.72mm |
| Lead Free | Lead Free |
| Length | 38.99mm |
| Max Current Rating | 11A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Through Hole, Screw |
| Number of Positions | 2 |
| Operating Force | 227N |
| Operating Position | 0.015inch |
| Orientation | Straight |
| Overtravel | 102mm |
| Packaging | Bulk |
| Pretravel | 119mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 8g |
| RoHS | Compliant |
