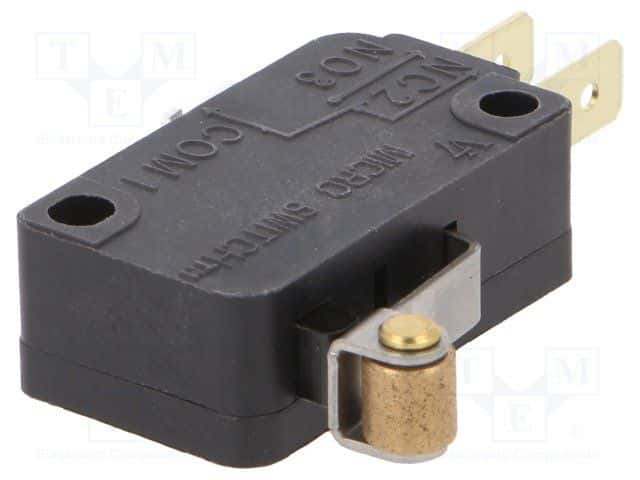

SPDT snap action switch featuring a roller lever actuator with a 206mm bronze and steel actuator length. This switch offers a 11A current rating at 277VAC and 250VDC, with a 100,000 cycle electrical life and 10,000,000 cycle mechanical life. Termination is via quick connect, and mounting options include chassis and screw. Operating force is 2.78N, with an operating position of 0.029 inches. Approvals include UL, CSA, and CE, and the product is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell V7-7B17D8-201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell V7-7B17D8-201 technical specifications.
| Actuator Length | 206mm |
| Actuator Material | Bronze, Steel |
| Actuator Type | ROLLER LEVER |
| Approvals | UL, CSA, CE |
| Package/Case | 201 |
| Contact Current Rating | 11A |
| Contact Material | Gold, Silver |
| Current Rating | 11A |
| Depth | 10.16mm |
| Electrical Life | 100000Cycles |
| Height | 29.79mm |
| Lead Free | Lead Free |
| Length | 38.99mm |
| Max Current Rating | 11A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 278N |
| Operating Position | 0.029inch |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 142mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | V7 |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 277V |
| DC Rated Voltage | 125V |
| Weight | 8g |
| RoHS | Compliant |
