SPDT momentary snap acting/limit switch with solder terminals and a simulated roller lever actuator. Features a 3A current rating at 125V AC (48V DC) and silver contact material. Offers a mechanical life of 1,000,000 cycles and an electrical life of 10,000 cycles. Operating temperature range from -40°C to 85°C. Mounts via chassis, through hole, screw, or solder with a straight orientation.
Package125
Current Rating3A
MountingChassis Mount, Through Hole, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell ZX40E10E01 technical specifications.
General
| Actuator Length | 118mm |
| Package/Case | 125 |
| Contact Material | Silver |
| Current Rating | 3A |
| Differential Travel | 13mm |
| Electrical Life | 10000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Chassis Mount, Through Hole, Screw, Solder |
| Operating Position | 0.032inch |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pretravel | 38mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ZX |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 48V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell ZX40E10E01 Datasheet
Download the complete datasheet for Honeywell ZX40E10E01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

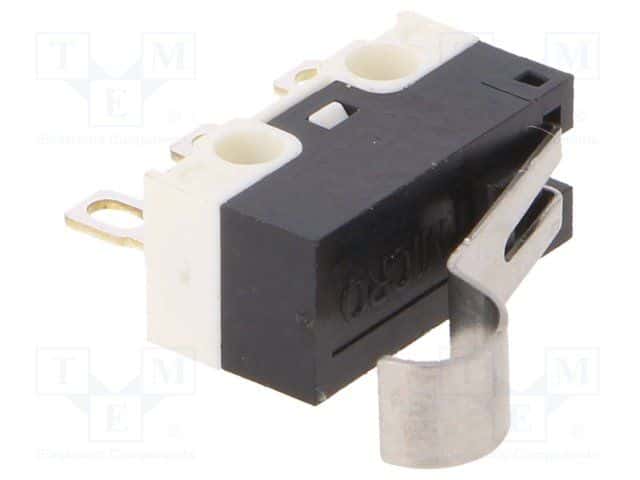

Product Images
