Technical Specifications
Idec AL6Q-M14-G technical specifications.
General
Actuator Color
Green
Contact Material
Gold, Silver
Electrical Life
100000Cycles
Illumination Color
Green
Illumination Type
LED
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
1000000Cycles
Mount
Panel
Orientation
Straight
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Solder
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Idec AL6Q-M14-G Datasheet
Download the complete datasheet for Idec AL6Q-M14-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

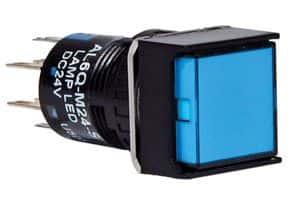

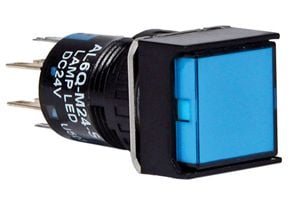

Product Images
