Idec

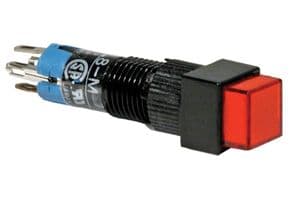

AL8Q-A11-A
Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Maintained Contact Solder Tab Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec AL8Q-A11-A technical specifications.
General
Actuator Color
Orange
Actuator Length
3.5mm
Contact Material
Gold, Silver
Electrical Life
100000Cycles
Illumination Color
Orange
Illumination Type
LED
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
100000Cycles
Mount
Panel
Orientation
Straight
Termination
Solder
Throw Configuration
SPDT
Compliance
RoHS
Not Compliant
Datasheet
Idec AL8Q-A11-A Datasheet
Download the complete datasheet for Idec AL8Q-A11-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
